Remote Non-Contact Infrared Temperature IRT30-100A

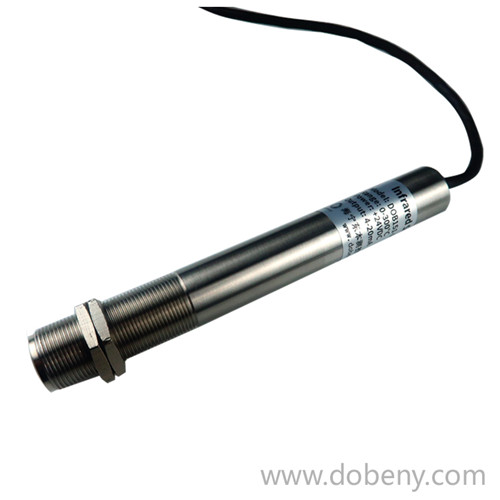

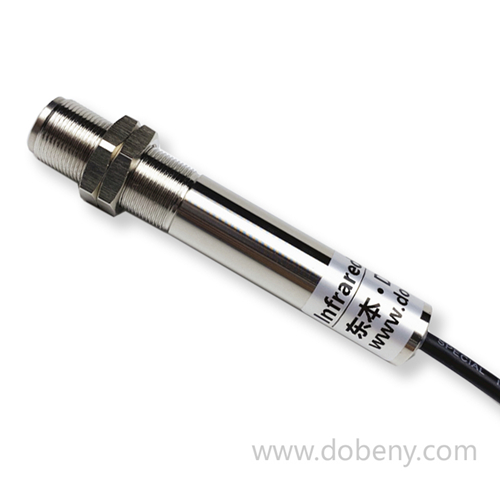

DOBENY's new miniature, low-cost, high performance infrared sensor/transmitter model DOBAC features a 18 mm O.D. by 107 mm  long stainless steel housing. The DOBAC comes with a 2 m shielded cable for power and output connections. Models feature industry standard outputs that provide easy interfacing directly to all meters, controllers, dataloggers, computer boards and PLC’s. The fixed emissivity of 0.95 allows for quick and easy measurements requiring no adjustment during installation and use.

DOBENY’s family of infrared non-contact sensors have no drift and have high repeatability & interchangeability giving them the edge needed to increase production process speed and quality.

· non-contact

· Output: 4 to 20 mA

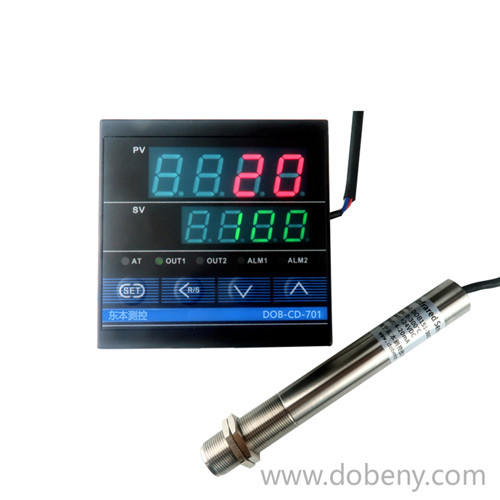

· interface directly to most of all meters, controllers, dataloggers

· Fast Response with High Stability

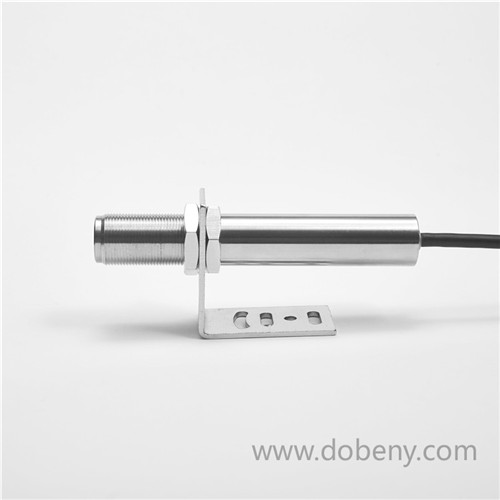

· Optional Air/Water Cooled Housing, Air Purge Collar, Laser Sighting Tool and Mounting Brackets

The infrared thermodetector can calculate the surface temperature of an object by measuring intensity of infrared radiation emitted by target without any contact with the target. Non-contact temperature measurement is the greatest advantage of infrared thermodetector which allows user to easily measure temperature of target which is difficult to approach or is moving.
Series A infrared thermodetector is an integrated device which integrating sensor, optical system and electronic circuit inside a stainless steel shell; series A is easy to install, standard thread on its metal shell can easily connect with installation part; meanwhile, series A has various types of components for selection (including blower, installation support, adjustable installation support and blower protection jacket) to meet requirements of different work conditions.

General Specifications

Model：IRT30-100A

Temperature Range:  0~100℃

Supply Voltage:  24 Vdc

Output:  4 to 20 mA

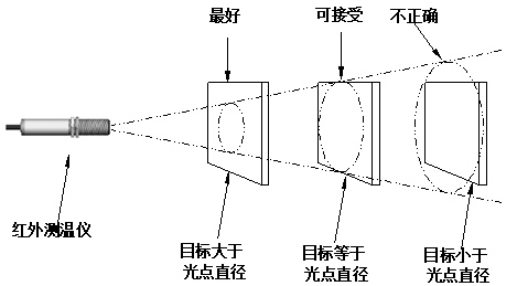

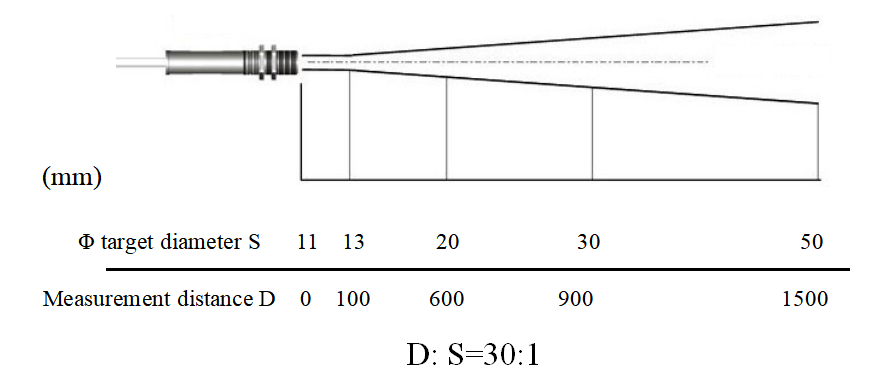

Field of View:  30：1

Accuracy: ±1% (when environment temperature is 23±5℃)*

Repeatability: ±1%,

Emissivity Setting Range:  pre-set to 0.95

Emissivity Setting Method:  User Adjust  emissivity

Response Time:  100 ms

Spectral Range:  8 to 14 μm

Maximum Current Draw:  25 mA

Construction:  Stainless Steel 304

Dimensions:  ø18 x length107 mm

Mounting:  two mounting nuts

Cable Length:  2m as standard (custom lengths also available)

Weight: 400g with 2 m(7') cable

Environmental Rating: IP65

Ambient Temperature Operating Range: 0 to 50°C (32 to 122°F)

4-wire , 3-wire or 2-wire ( freely)

Ordering information IRT(Field of View)-(Pre-Calibrated Temperature Range)A-Cable Length.

Ordering Examples: IRT30-10CA-02，Field of View:30:1, 0 to 100°C, 2m
