Low Cost Non-Contact Anti-dust Infrared Temperature Sensor

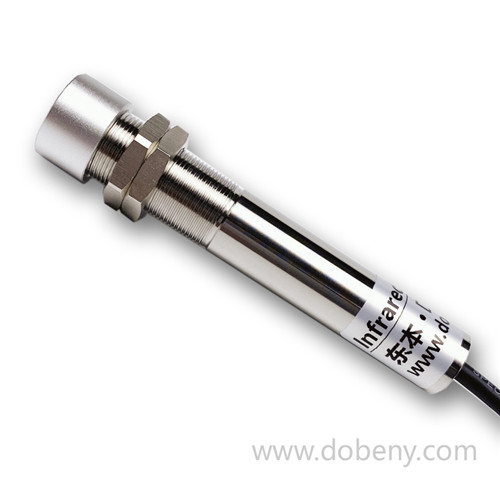

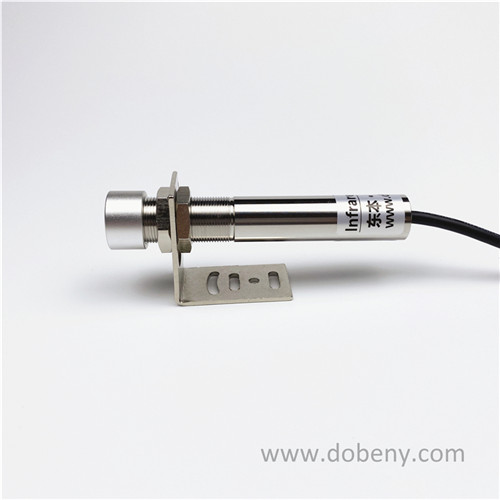

DOBENY's new miniature, low-cost, high performance Anti-dust infrared sensor/transmitter model DOBAC features a 18 mm O.D. by 107 mm  long stainless steel housing. Models feature industry standard outputs that provide easy interfacing directly to all meters, controllers, dataloggers, computer boards and PLC’s.

DOBENY’s family of infrared non-contact sensors have no drift and have high repeatability & interchangeability giving them the edge needed to increase production process speed and quality.

· non-contact

· Output: 4 to 20 mA

· Measurements to 300°C

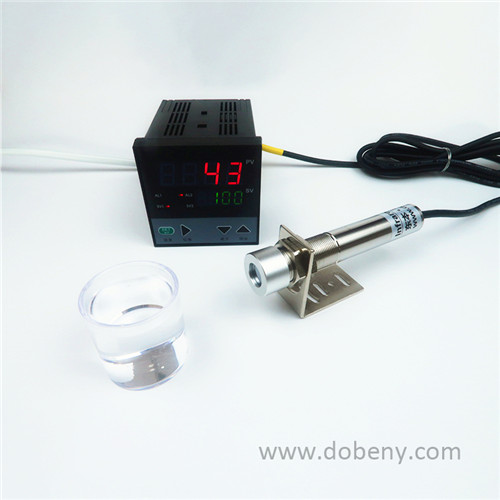

·interface directly to most of all meters, controllers, dataloggers

· Fast Response with High Stability

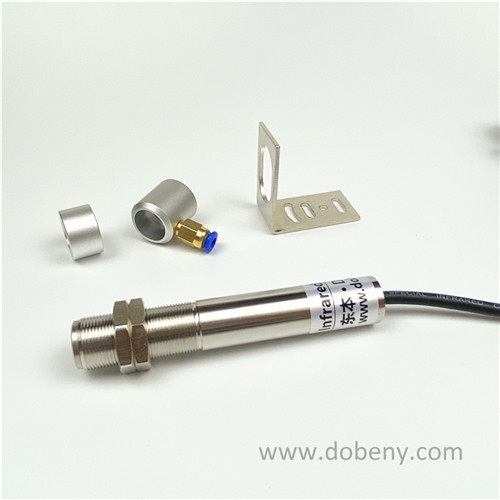

·Optional Air/Water Cooled Housing, Air Purge Collar, Laser Sighting Tool and Mounting Brackets

General Specifications

Model： IRT-300AD

Temperature Range:  0~300℃

Supply Voltage:  24 Vdc

Output:  4 to 20 mA

Field of View:  15：1

Accuracy: ±2°C or ±2%,(Ambient temperature: 23℃±5℃)

Repeatability: ±1°C or 0.5%, whichever is greater

Emissivity Setting Range:  pre-set to 0.95

Emissivity Setting Method:  User Adjust  emissivity

Response Time:  100 ms

Spectral Range:  8 to 14 μm

Maximum Current Draw:  25 mA

Construction:  Stainless Steel 304

Dimensions:  ø18 x length107 mm

Mounting:  two mounting nuts

Cable Length:  2m as standard (custom lengths also available)

Weight: 150g with 2 m(7') cable

Environmental Rating: IP65

Ambient Temperature Operating Range: 0 to 50°C (32 to 122°F)

4-wire , 3-wire or 2-wire ( freely)

Maximum distance and size of measurement point
Size of measurement target and optical features of infrared thermodetector determine maximum distance between measurement target and measurement head. To prevent measurement error, the measurement target should fill field of view of probe as much as possible. Therefore, always keep measurement point smaller than measurement object or at least the same size as measurement target.

When adjust measurement target and measurement head, ensure that optical path is barrier free, as shown below:

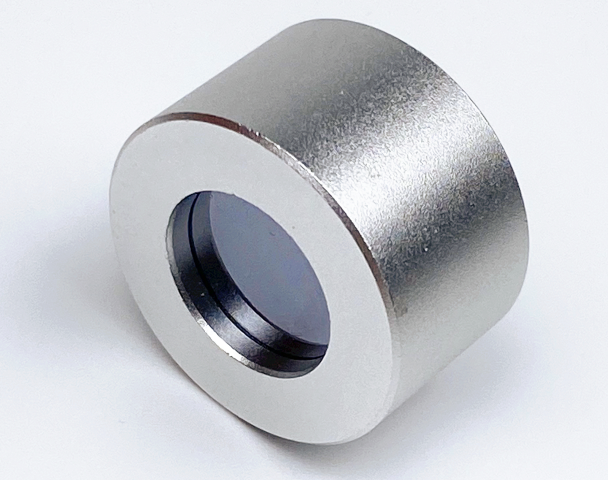

Mini-type dust prevention device：

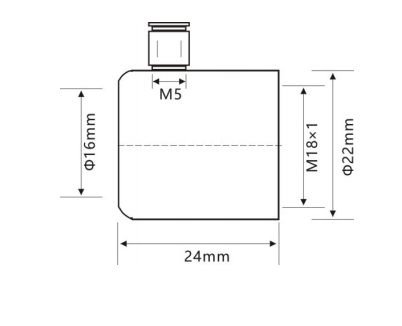

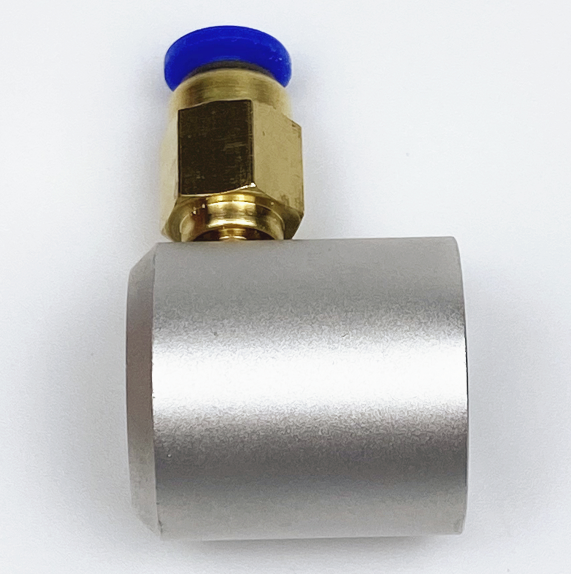

Blower：

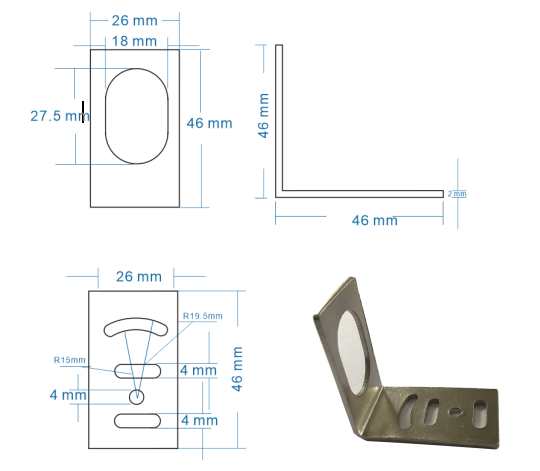

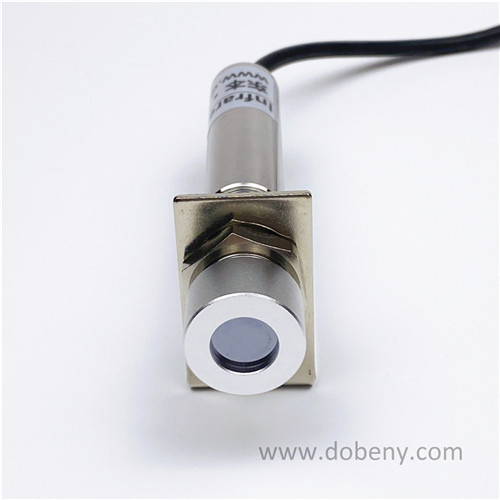

Mounting brackets：
