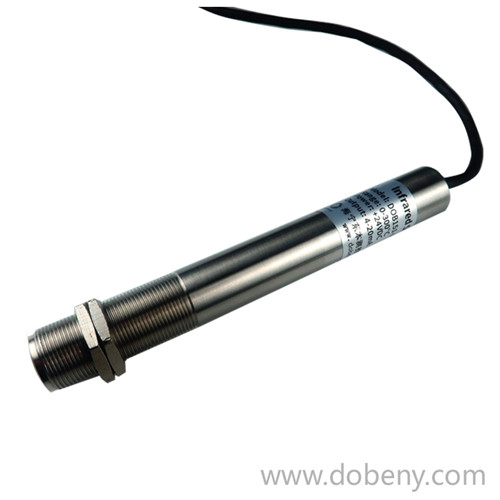

IRT-1800A Infrared High Temperature Sensor- Metal solution

DoBeny's new miniature, low cost,high performance infrared IRT-1800A series is best used for measuring metal solution.Such as molten iron.

DoBeny’s family of infrared non-contact sensors have no drift and have high repeatability & interchangeability giving them the edge needed to increase production process speed and quality.

High temperature infrared temperature sensor

Best for measuring high temperature metals（Foundry,Sinter Plant,Blast Furnace,Continuous CastingProcessing,Forging,Metal Packaging ,High Temp Heat Treating,Hot Forming Steel Panels ,High Precision Heat Treatment in Vacuum Carburizing,High Temperature Vacuum Heat Treatment,Fasteners Heat Treatment - Hydrogen Embrittlement,Hot Rolling Mills,Tube and Pipe Mills,Rod and Wire Mills,Galvanizing and Annealing Lines,Aluminum Brazing ,Aluminum Processing,Aluminum Solution Reheat)

· non-contact

· Output: 4 to 20 mA

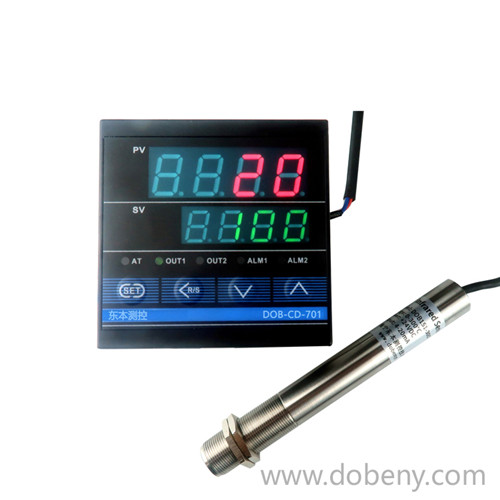

· interface directly to most of all meters, controllers, dataloggers

· Fast Response 5ms with High Stability

· Optional Air/Water Cooled Housing, Air Purge Collar, Laser Sighting Tool and Mounting Brackets

General Specifications

Model：IRT-1800A

Temperature Range: 400~1800℃ （See To Order chart ）

Supply Voltage:  24 VDC

Output: 4 to 20 mA

Field of View:  30：1

Accuracy: ±1% (when environment temperature is 23±5℃)*

Repeatability: ±1%

Response Time: 5ms

Spectral Range: 0.1-18μm

Construction: Stainless Steel 304

Dimensions: ø18 x length107 mm

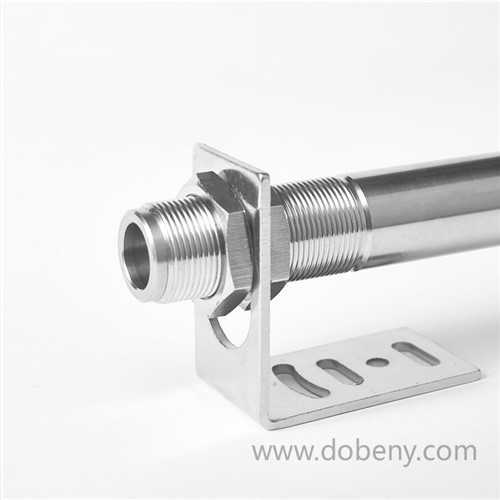

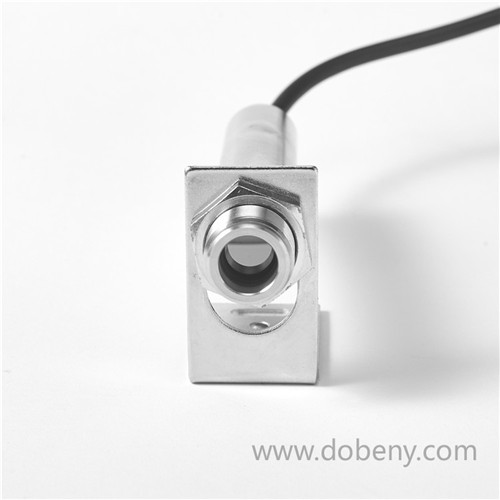

Mounting: two mounting nuts

Cable Length: 2m as standard (custom lengths also available)

Weight: 400g with 2 m(7') cable

Environmental Rating: IP65

Ambient Temperature Operating Range: 0 to 50°C (32 to 122°F)

4-wire , 3-wire or 2-wire

The Infrared Temperature Sensor can calculate the surface temperature of an object by measuring intensity of infrared radiation emitted by target without any contact with the target. Non-contact temperature measurement is the greatest advantage of Infrared Temperature Sensor which allows user to easily measure temperature of target which is difficult to approach or is moving.

Infrared Temperature Sensor IRT-1800A is an integrated device which integrating sensor, optical system and electronic circuit inside a stainless steel shell; IRT-1800A is easy to install, standard thread on its metal shell can easily connect with installation part; meanwhile, IRT-1800A has various types of components for selection (including blower, installation support, adjustable installation support and blower protection jacket) to meet requirements of different work conditions.

Maximum distance and size of measurement point
Size of measurement target and optical features of infrared thermodetector determine maximum distance between measurement target and measurement head. To prevent measurement error, the measurement target should fill field of view of probe as much as possible. Therefore, always keep measurement point smaller than measurement object or at least the same size as measurement target.

When adjust measurement target and measurement head, ensure that optical path is barrier free, as shown below:

Ordering information IRT(Field of View)-(Pre-Calibrated Temperature Range)A-Cable Length.

Ordering Examples: IRT20-1200A-02，Field of View:20:1, 300 to 1200°C, 2m
