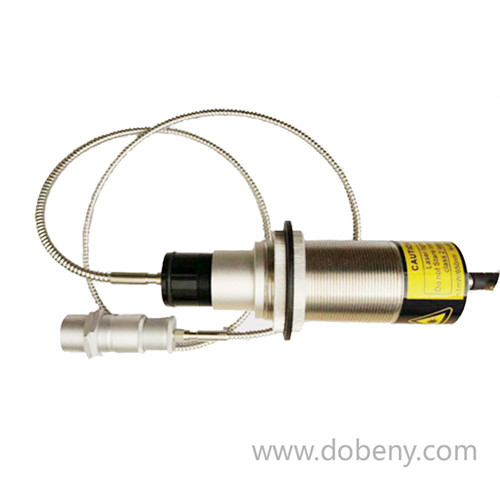

High Performance optical fiber infrared temperature sensor IRT-FO2000AD

Product introduction of fiber Infrared temperature sensor:
IRT-FO2000AD series optical fiber Infrared temperature sensor has a sturdy shape, adopts stainless steel lens (with purge function), aluminum die-casting shell, protection level is IP54.
It consists of a lens, optical fiber, and processing components. The fiber and lens assembly can withstand a high temperature of 250°C without additional cooling.
The optical fiber Infrared temperature sensor IRT-FO2000AD is not only suitable for temperature measurement in general industrial occasions, but also suitable for installation in places with strong electromagnetic interference and high ambient temperature.
The software and hardware design is suitable for reliable detection of one million times the dynamic range of the signal, and meets the user's requirements for instrument accuracy and resolution.

Features:
Temperature measurement range covers 300℃~2500℃
Temperature measurement accuracy can reach 0.5%
Repeat accuracy is 2℃
Adjustable product resolution up to 0.1℃
Use adjustable focus lens or fixed focus lens
Adopt laser aiming to clearly show the position and size of the measured target. Use PID constant temperature control for the detector to eliminate the influence of ambient temperature on the measurement. The specially designed narrow-band infrared color filter minimizes the change in the emissivity of the detector.
Using industrial-grade LED screen as the display interface, friendly man-machine interface
Rich peripheral interface: 2 independent analog output, 2 alarm output, 1 level output and RS485 communication interface.
Software and hardware watchdog, hardware EMI filtering and other design to improve system stability Can resist 2500VDC pulse group interference Support up to 26 thermometers bus cascade, realize network control through PC
