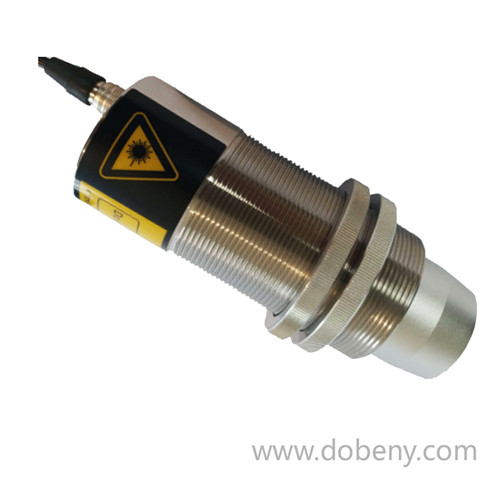

Bright metal Focusing Non-Contact Infrared temperature sensor IRT-CF300A

DoBeny's new miniature, high performance  Bright metal Focusing Non-Contact Infrared temperature sensor IRT-CF300A is Suitable for medium frequency heating, high frequency heating and other environments where contact cannot be measured.Measure the surface temperature of bright rollers such as laminating machines, laminating machines, calenders, and other low-temperature bright metals.

DoBeny’s family of infrared non-contact sensors have no drift and have high repeatability & interchangeability giving them the edge needed to increase production process speed and quality.

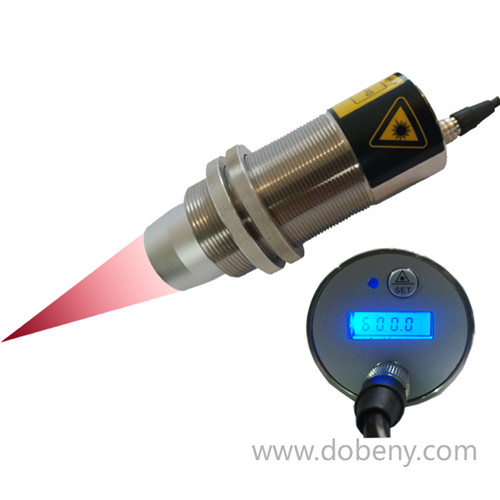

Laser indicates the measurement position, the minimum focus of the adjustable focus lens can be measured 2 mm
Spot indicates the best measurement position (200 focus 2mm and 500 focus 3mm)
Robust and durable sensor head meets IP65 (NEMA4) standards

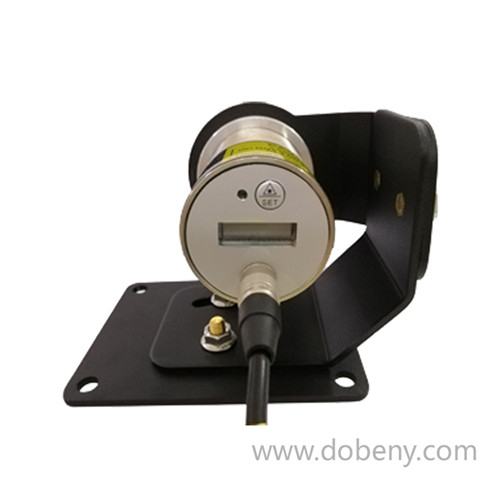

LCD temperature display, on-site emissivity adjustment
4-20mA and digital output optional

To Order：

Focusing Non-Contact Infrared temperature sensor CF series best for measuring high temperature metals（Foundry,Sinter Plant,Blast Furnace,Continuous Casting Processing,Forging,Metal Packaging ,High Temp Heat Treating,Hot Forming Steel Panels

,High Precision Heat Treatment in Vacuum Carburizing,High Temperature Vacuum Heat Treatment,Fasteners Heat Treatment - Hydrogen Embrittlement,Hot Rolling Mills,Tube and Pipe Mills,Rod and Wire Mills,Galvanizing and Annealing Lines,Aluminum Brazing ,Aluminum Processing,Aluminum Solution Reheat)

General Specifications

Model： IRT-CF300A

Range：50~300℃

Supply Voltage:  24 VDC

Output: 4 to 20 mA

Response Time：≤20mS（95% ）

Spectral Range：2.0-3.0μm

Accuracy: ±1%, whichever is greater (when environment temperature is 23±5℃)*

Repeatability: ±1% or ±5℃ , whichever is greater    (when environment temperature is 23±5℃)*

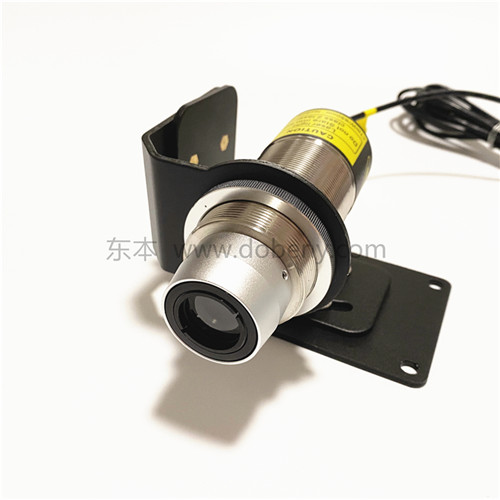

Mounting: two mounting nuts

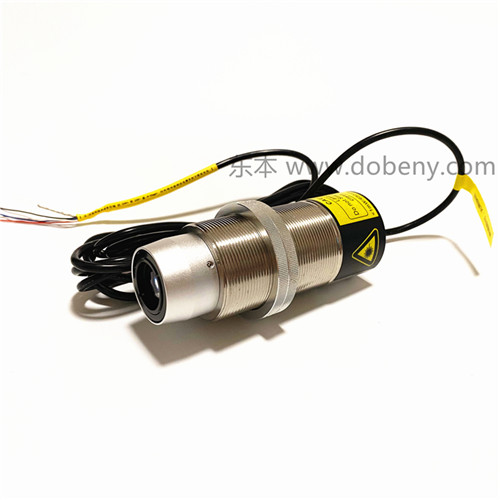

Cable Length: 2m as standard (custom lengths also available)

Weight: 400g with 2 m(7') cable

Environmental Rating: IP65

Ambient Temperature Operating Range: 0 to 50°C (32 to 122°F)

Dimensions:

Technical Experts at Your Service Call +86-18257343661 （Wechat） from 8 AM—5 PM China for applications and technical support, or email dobeny@126.com, you will have a response within 24 hours.
