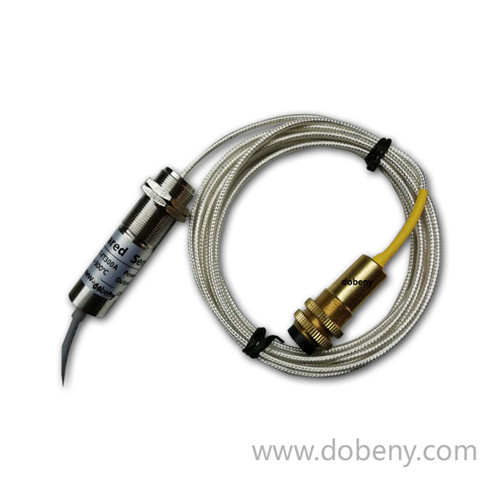

Fission Type Infrared Temperature Sensor IRT-FT200A

Fission Type Infrared Temperature Sensor

· Measurements to 200°C

· Ambient Temperature Operating Range: 0 to 120°C

· Output: 4 to 20 mA or E-Type or K-Type

· non-contact

· interface directly to most of all meters, controllers, dataloggers

· Fast Response with High Stability

General Specifications

Model：IRT-FT200A

Temperature Range:  0~200℃ （See To Order chart ）

Supply Voltage:  24 VDC

Output:  4 to 20 mA

Field of View:  15：1

Accuracy: ±2°C or 1.5%, whichever is greater

Repeatability: ±1°C

Emissivity Setting Range:  pre-set to 0.95

Response Time:  100 ms

Spectral Range:  8 to 14 μm

Maximum Current Draw:  <50 mA

Construction:  Stainless Steel 304

Dimensions: Tip probe  ø14x length 46 mm

Back part  ø18x length 68 mm

Weight: 400g with 2 m(7') cable

Environmental Rating: IP65
