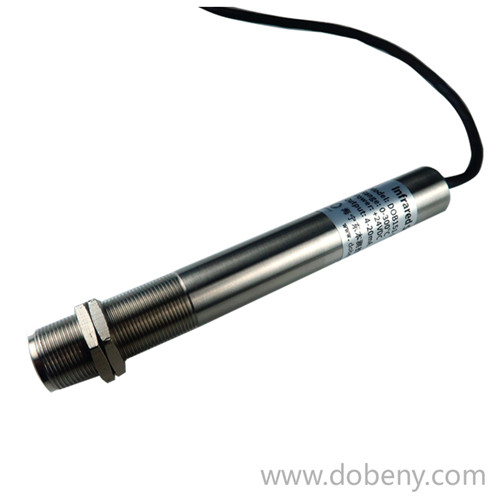

IRT-1200K Infrared Thermocouple

Type-K infrared thermocouple output has advanced infrared temperature measurement performance, standard 4-wire system design. When there is noise interference during temperature measurement or a long cable is required, it can replace the traditional thermocouple and has K-type output.

The IRT-1200K produce repeatable temperature readings for use in a wide variety of

process-monitoring and quality control application

· non-contact

· K Thermocouple Output Signal

· interface directly to most of all meters, controllers, dataloggers

· Fast Response with High Stability

· Optional Air/Water Cooled Housing, Air Purge Collar, Laser Sighting Tool and Mounting Brackets

General Specifications

Model:IRT-1200K

Temperature Range:  0~1200℃ （See To Order chart ）

Supply Voltage:  6-24 Vdc

Output:  K thermocouple

Field of View:  15：1 （See To Order chart ）

Accuracy: ±2℃ or ±1.5%, whichever is greater    (when environment temperature is 23±5℃)*

Repeatability: ±1°C

Emissivity Setting Range:  Fixed at 0.95

Emissivity Setting Method:  User Adjust  emissivity

Response Time:  100 ms

Spectral Range:  8 to 14 μm

Construction:  Stainless Steel 304

Dimensions:   107 L x 18 D mm

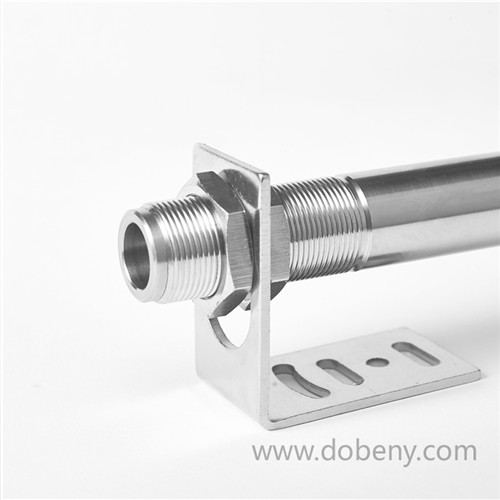

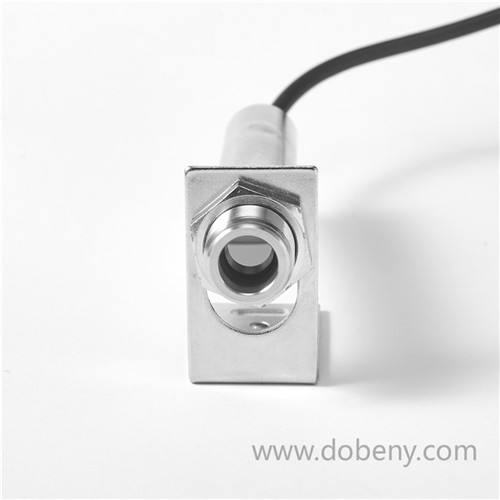

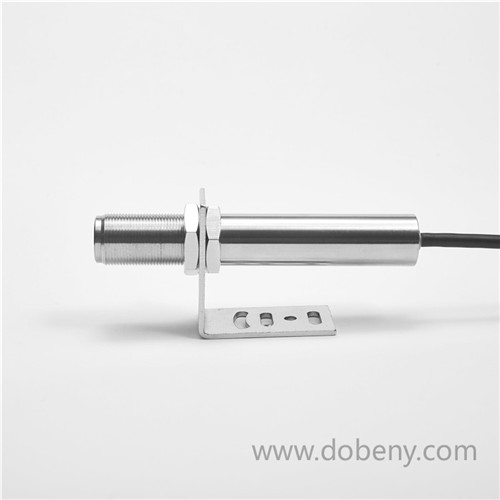

Mounting:  two mounting nuts

Cable Length:  2m (7') (included) longer lengths available to order

Weight:  400g with 2 m(7') cable

Environmental Rating:  IP65

Ambient Temperature Operating Range:  0 to 50°C (32 to 122°F)

Relative Humidity: 95% max non-condensing

Maximum distance and size of measurement point

When adjust measurement target and measurement head, ensure that optical path is barrier free, as shown below:

Ordering information IRT(Field of View)-(Pre-Calibrated Temperature Range)(Thermocouple Type).

Ordering Examples: IRT15-500K，Field of View:15:1，thermocouple Type K, 0 to 500°C
