Visual temperature measurement aiming online infrared thermometer IRT-MS series

IRT-MS visual temperature measurement aiming online infrared thermometer
IRT-MS visual aiming series, with temperature display, 3 operation keys, monochrome temperature measurement, adjustable focus.
Focusing range: 0.5m~10m
Temperature measurement range: 400~3000 or other ranges

Technical features:
● Can accurately measure small targets, the smallest measurable 2mm
● There are two options for real-time value and peak value
● Peak holding time can be set from 0.01 to 199.9 seconds
● Video display aiming with real temperature measurement area
● Spiral focusing with scale indication
● The whole machine is sturdy and sealed, and with ambient temperature compensation, suitable for use in industrial sites with harsh environmental conditions
● With visual aiming and video split output function, it can be connected to an LCD TV or support PAL hard disk recorder.
● The video temperature is displayed simultaneously.
● 4~20mA standard current loop remote transmission

technical parameter
Model: IRT-MS series

Temperature measurement parameters
Temperature range: 400~1600 ℃; 600~2000℃ or other scales customized
Temperature measurement accuracy: ±1.5% (±2.5% when above 2000℃)
Repeatability: ±1℃
Display resolution: 1℃
Output resolution: 1℃
Transmission rate: 0.10～1.00, set and modify step length 0.001
Temperature measurement method: real-time value, peak value

Optical parameters
Operation and display: SET /< ▼ ▲ three-key operation; TFTLCD screen
Measuring distance: 0.5m～∞
The smallest measurable target: Φ2mm (the distance coefficient is 250:1, the installation distance is 0.5m)

Electrical parameters
Power source: DC18～24V
Power consumption: 300mA (maximum)
Current output response time: <=5ms
Output 4-20mA

Environmental parameters
Storage temperature: -40～85℃
Working environment: ambient temperature 0～60℃, humidity: 10～80% (no condensation);
Ambient temperature when adding water cooling jacket: 0～175℃

Physical parameter
Probe size: Φ66mm×235mm
Weight: 1Kg, (without cable plug)

Aiming and focusing
Aiming: You can see not only the position of the target to be measured, but also the size of the measuring point through the visual sight. It is very convenient for measuring small targets such as rods and wires or measuring targets in furnaces such as industrial furnace vacuum furnaces.
Focusing: When measuring objects with a small target size, accurate focusing is required. This series of instruments has a focusing scale line on the probe for users to easily adjust the focus.
Distance coefficient: 250:1 for MS series

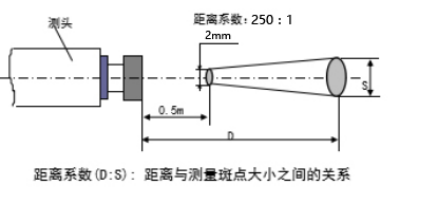

The relationship between the distance between the target and the lens of the instrument and the size of the measuring point is shown in the figure below. Measuring point size=distance/(D:S)
