Model: IRT-CD
Name: digital temperature pressure controller
Input signal: MV,DC, DA, R, J, K...
Output signal: 0-10vdc, 0-5vdc, 4-20mA
Application: Pressure, and temperature measurement & controller
Characteristic: temperature indicator, pressure indicator

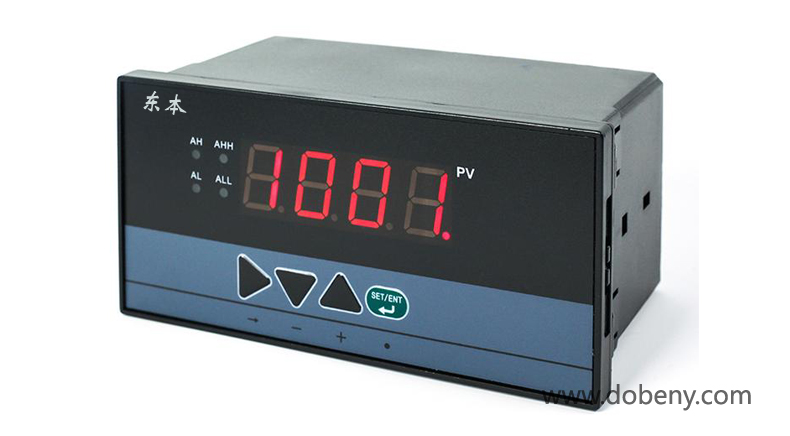

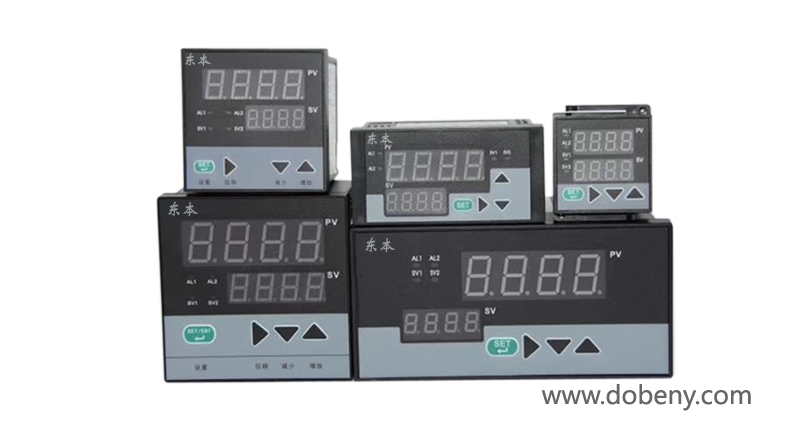

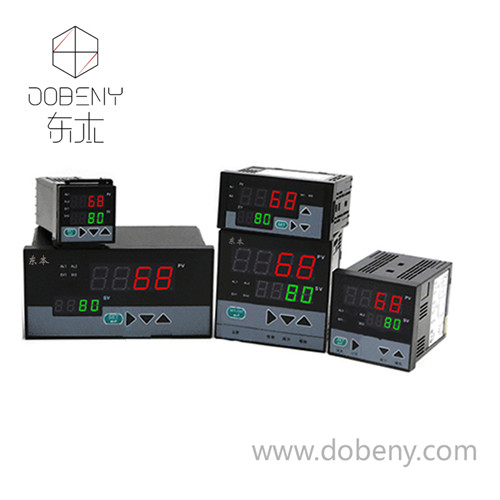

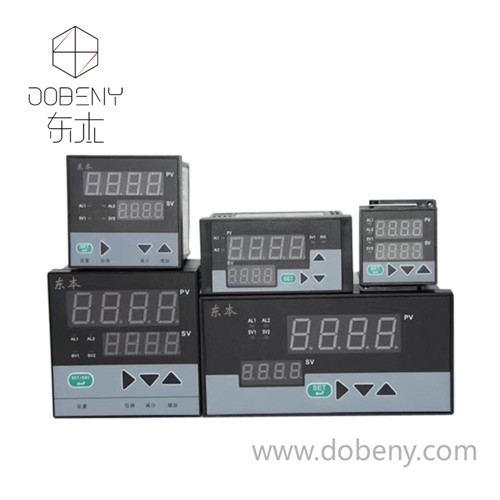

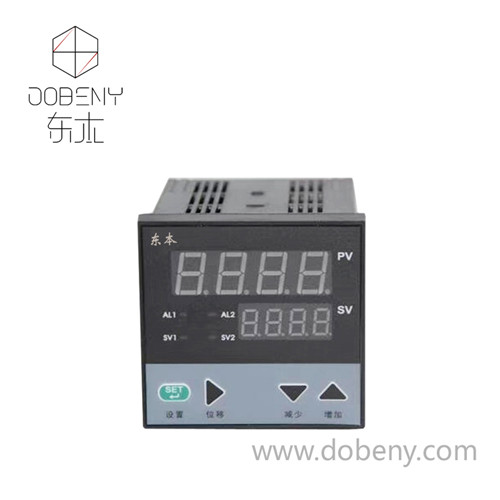

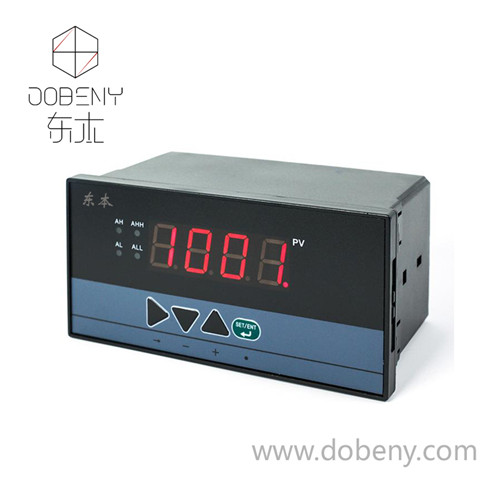

IRT-CD intelligent pressure and temperature regulator is a 1/8 DIN or ¼ DIN, panel-mount, dual 4-digit regulator, which takes the advantage of latest state-of-art technology and comes in small-size, light-weight and in low-power. This pressure regulator has been specifically designed for use with mV/Volt output transducers from different famous manufacturers such as Dynisco, Gefran, ONEhalf20 and so on. Together with the mv/Volt transducers and thermocouple, IRT-CD Pressure Regulator can be working as the high precision pressure and temperature measurement. IRT-CD Pressure regulator displays the pressure and temperature and outputs the control relays timely.
|
(1) |
Display |
Dual 4-digit Green and Red LEDs |
|
(2) |
Resolution |
0.2% FSO ± 1 |
|
(3) |
LEDs |
Out, Alarm-1, Alarm-2, Calibration |
|
(4) |
Input Sensibility |
2.5mv/V or 3.3 mV/V (automatic selection) |
|
(5) |
Sampling Speed |
20 per second |
|
(6) |
Excitation Voltage |
+9 VDC (output to transducer) |
|
(7) |
Temperature Input |
Thermocouple “E”, “J”, “K” |
|
(8) |
All Output Relays |
Relay 220V 1A |
|
(9) |
Retransmission |
4~~20 mA standard current loop |
|
(10) |
Communication |
RS-485 MODBUS( DPY602 Only) |
|
(11) |
Alarm Range |
0001 – 9999 PSI or Bar (configurable) |
|
(12) |
Temperature |
0 - 55°C |
|
(13) |
Humidity |
<= 80% RH |
|
(14) |
Calibration |
80% FSO (Full Scale Output) |
|
(15) |
Power Supply |
110/220VAC or +24VDC (designated while purchasing) |
|
(16) |
Size |
IRT-CD701: 72mm×72mm×110 mm (W x H x D) IRT-CD901: 96mm x 96mm x 110 mm (W x H x D)
|
|
|
||
|
|
|
