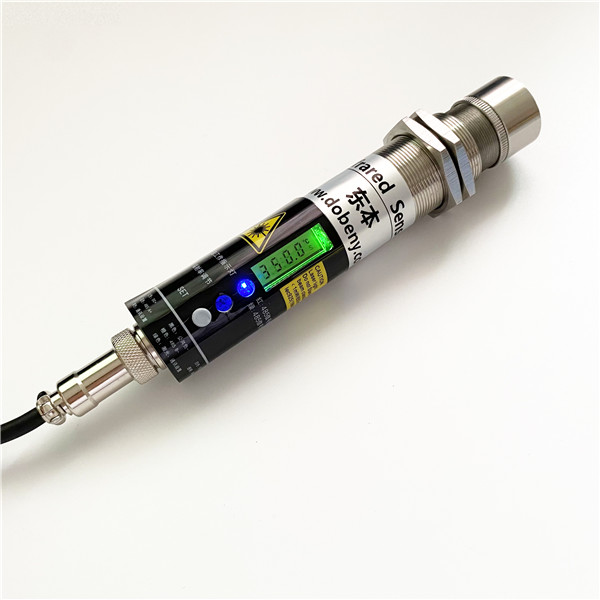

Copper Iron Aluminum Stainless Steel Metal Infrared laser Temperature Sensor with LCD display

Introduction

DoBeny’s family of infrared non-contact sensors have no drift and have high repeatability & interchangeability giving them the edge needed to increase production process speed and quality.

L Adjustable Emissivity Infrared laser Temperature Sensor with LCD display IRT-ZL series are best for measuring high temperature objects（Printing, Paper, Lamination, Drying, Processed Food, Textile, Pharmaceutical, Flat Glass, Refractory, Furnaces, Laser Welders,Foundry,Sinter Plant,Blast Furnace,Continuous Casting Processing,Forging,Metal Packaging ,High Temp Heat Treating,Hot Forming Steel Panels,High Precision Heat Treatment in Vacuum Carburizing,High Temperature Vacuum Heat Treatment,Fasteners Heat Treatment - Hydrogen Embrittlement,Hot Rolling Mills,Tube and Pipe Mills,Rod and Wire Mills,Galvanizing and Annealing Lines,Aluminum Brazing ,Aluminum Processing,Aluminum Solution Reheat.......)

· Non-contact

· Output: 4 to 20 mA /RS485

· The laser indicates the measuring position, and the minimum focus is 3mm

· LCD temperature display, focal length: 300mm-10000mm adjustable

· Fast Response 50ms with High Stability

· 4-20mA/or 0-20mA (Additional 250Ω or 500Ω resistance can be converted to 0-5V/1-5V/0-10V/2-10V)

2.General Specifications

MODEL：IRT-ZL1200AD

Range：300-1200℃

Supply Voltage:  24 VDC

Output: 4 to 20 mA / RS485

Field of View:  120：1

Accuracy: ±1.2%

Repeatability: ±1℃

Response Time: 50ms

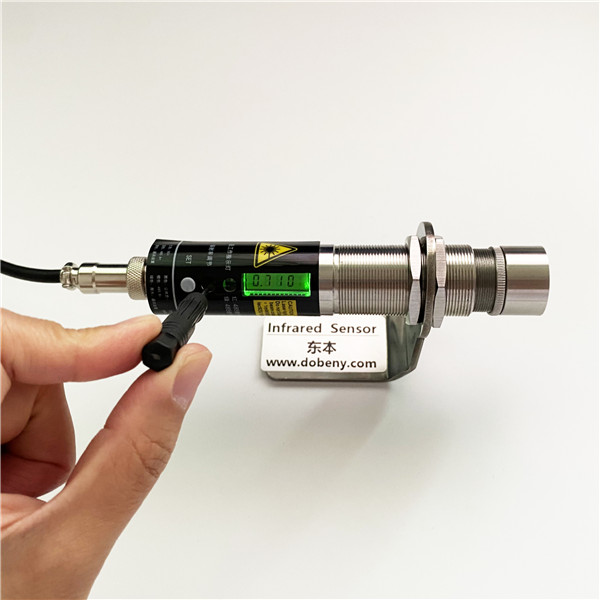

Emissivity adjustment: potentiometer adjustment (0.01-1.00)

Construction: Stainless Steel 304

Dimensions: ø25 x length（160~174） mm

Mounting: two mounting nuts

Cable Length: 3m as standard (custom lengths also available)

Weight: 300g with 2 m(7') cable

Environmental Rating: IP65

Ambient Temperature Operating Range: 0 to 50°C (32 to 122°F)

Work indicator: Comes with work indicator, 485 communication indicator

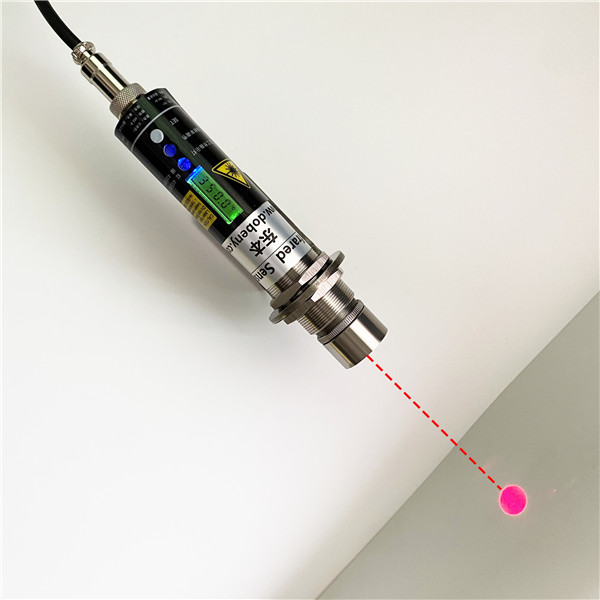

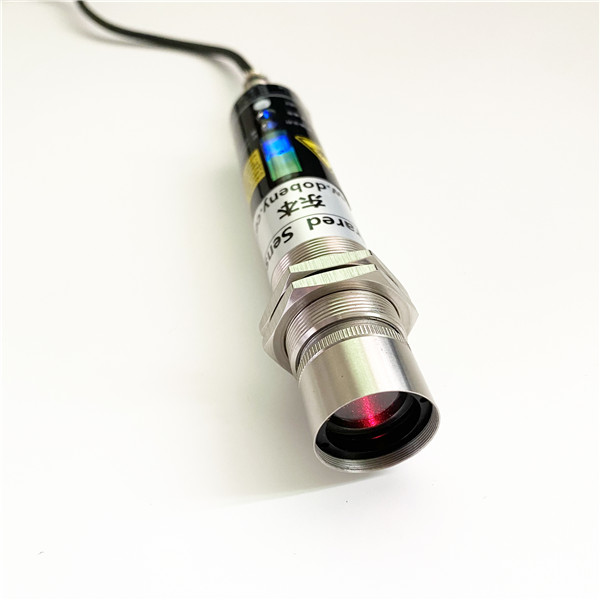

Laser lighting:
1. Press the button to light up the laser, and it will automatically turn off after a delay of 1 minute by default;
2. When the target temperature is greater than the lower limit of the instrument, the aiming will be automatically turned on, with a delay, and the delay time of the laser will be adjustable.

Overall dimensions

Optical path chart

S=D/F (S is the diameter of the target, D is the measuring distance, and Field of View).

3. Operating principle and precautions
a．Principle of infrared temperature measurement
Any object will emit infrared energy externally and radiation intensity changes with temperature. T Adjustable Emissivity Infrared laser Temperature Sensor with LCD display is usually used for measuring infrared radiation energy which wavelength is within 0.8μm－18μm.
Adjustable Emissivity Infrared laser Temperature Sensor with LCD display is a photoelectron sensor which receives infrared radiation and converts it to electrical signal, displays or outputs temperature by linear signal processing by line amplifier.
b．Maximum distance and size of measurement point
Size of measurement target and optical features of infrared laser Temperature Sensor determine maximum distance between measurement target and measurement head. To prevent measurement error, the measurement target should fill field of view of probe as much as possible. Therefore, always keep measurement point smaller than measurement object or at least the same size as measurement target.
c.Environment temperature
Adjustable Emissivity Infrared laser Temperature Sensor with LCD display IRT-ZL series can work within environment temperature 0--60℃, otherwise use cooling protection jacket.
d.Cleaning lens
Keep instrument lens clean and prevent measurement error or damage or lens caused by dust or smoke. If there is dust accumulated on the lens, wipe it clean with lens wiping paper dipped with anhydrous alcohol.
e.Electromagnetic interference
To prevent electromagnetic interference, please take the following measures:
The infrared laser Temperature Sensor should be installed in a place away from electromagnetic field (such as electric motor, motor and high power cable). Add metal sleeve is necessary.

4. Installation
a. Mechanical installation

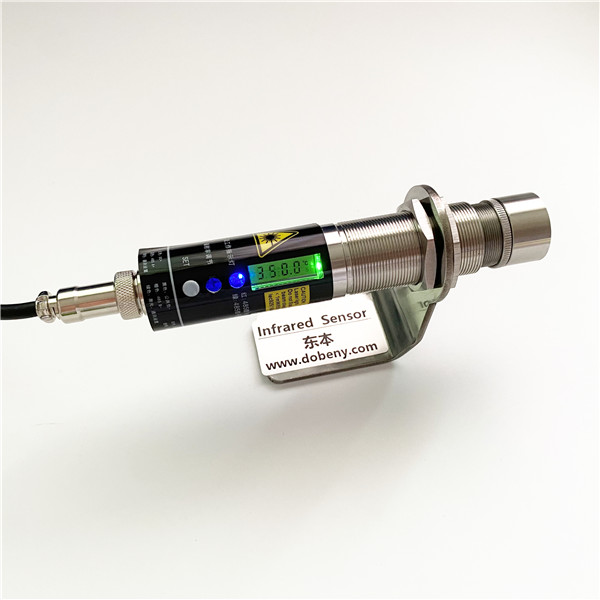

Series IRT-ZL metal housing has M25×1 thread which can install directly or use installation support. The adjustable installation support makes it easier to adjust measurement head.
When adjust measurement target and measurement head, ensure that optical path is barrier free, as shown below:
