Miniature Non-Contact Infrared Temperature Sensor

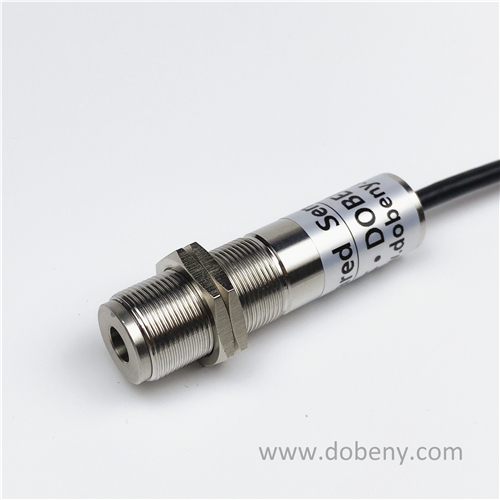

DOBENY's new miniature, low-cost, high performance infrared sensor/transmitter model IRT-DT series features a 18 mm O.D. by 68 mm  long stainless steel housing. The IRT-DT series comes with a 2 m shielded cable for power and output connections. Models feature industry standard outputs that provide easy interfacing directly to all meters, controllers, dataloggers, computer boards and PLC’s. The fixed emissivity of 0.95 allows for quick and easy measurements requiring no adjustment during installation and use.

DOBENY’s family of infrared non-contact sensors have no drift and have high repeatability & interchangeability giving them the edge needed to increase production process speed and quality.

· non-contact

· Output: 4 to 20 mA

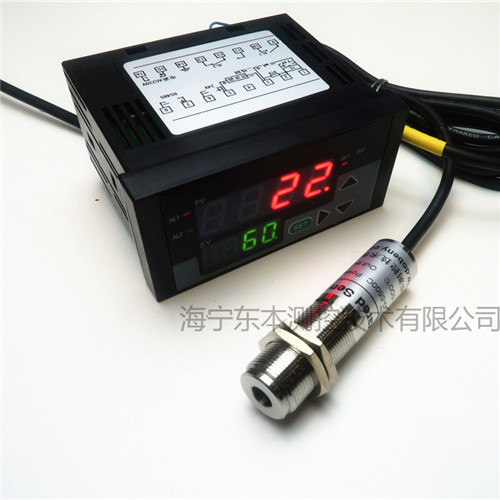

·interface directly to most of all meters, controllers, dataloggers

· Fast Response with High Stability

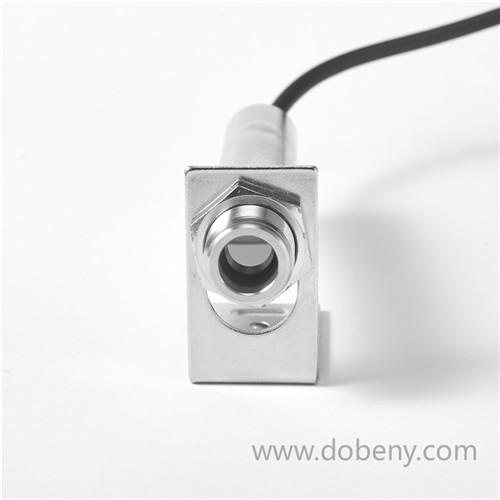

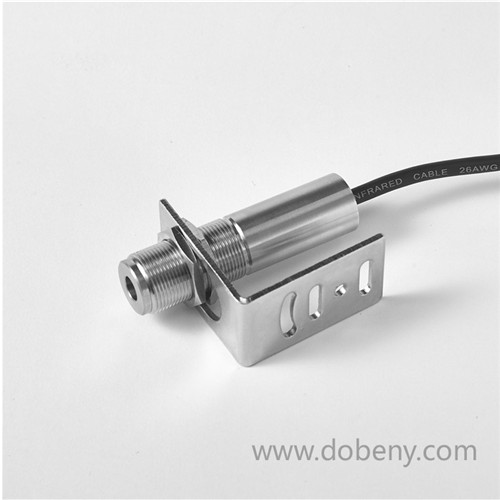

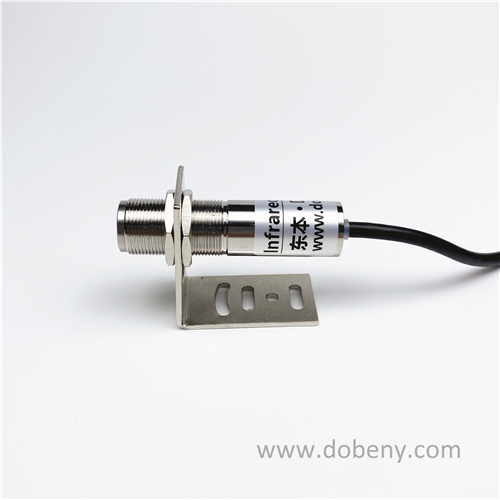

·Optional Air/Water Cooled Housing, Air Purge Collar, Laser Sighting Tool and Mounting Brackets

General Specifications

Model：IRT-DT series

Temperature Range:  0~100℃  / 0~200℃ /  0~300℃  / 0~500℃  / -20~500℃ ........

                             （See To Order chart ）

Supply Voltage:  24 Vdc

Output:  4 to 20 mA

Field of View:  20：1

Accuracy: ±2°C or 1%, whichever is greater

Repeatability: ±1%

Emissivity Setting Method:  User Adjust  emissivity

Response Time:  300 ms

Spectral Range:  8 to 14 μm

Maximum Current Draw:  25 mA

Construction:  Stainless Steel 304

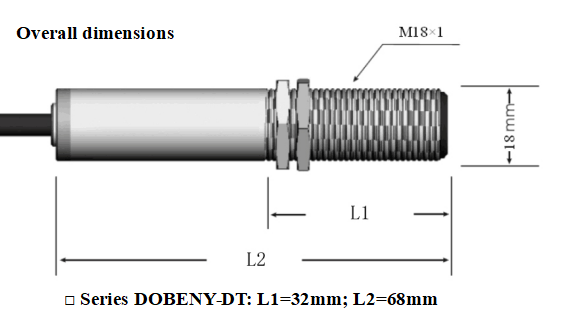

Dimensions:  ø18 x length 68 mm

Mounting:  two mounting nuts

Cable Length:  2m as standard (custom lengths also available)

Weight: 200g with 2 m(7') cable

Environmental Rating: IP65

Ambient Temperature Operating Range: 0 to 50°C (32 to 122°F)

4-wire , 3-wire or 2-wire ( freely)

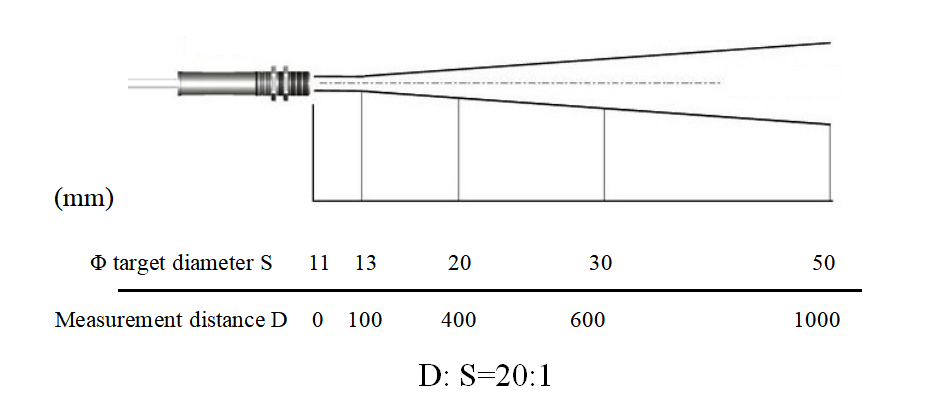

Maximum distance and size of measurement point
Size of measurement target and optical features of Infrared Temperature Sensor determine maximum distance between measurement target and measurement head. To prevent measurement error, the measurement target should fill field of view of probe as much as possible. Therefore, always keep measurement point smaller than measurement object or at least the same size as measurement target.

When adjust measurement target and measurement head, ensure that optical path is barrier free, as shown below:

Ordering information IRT(Field of View)-DT(Pre-Calibrated Temperature Range)A-Cable Length.

Ordering Examples: IRT20-DT200A-02，Field of View:20:1, 0 to 200°C, 4-20mA，2m
