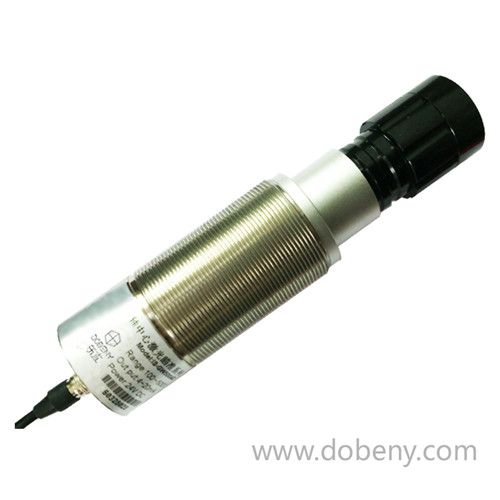

IRT-GW400A Focusing Non-Contact Infrared temperature sensor with LCD screen

Thank you for choosing DoBeny's high performance Focusing Non-Contact Infrared temperature sensor with LCD screen IRT-GW400A series.

Features
Focusing Non-Contact Infrared temperature sensor with LCD screen has a precise coaxial center laser aiming function, and the LCD displays the current status, which can easily align the measurement target and indicate the best measurement distance. Provide users with convenient and highly reliable measurement methods. It is especially suitable for medium frequency heating, high frequency heating, microwave heating, laser welding and other small target environments that cannot be measured by contact.
a. The laser indicates the measuring position, the standard focusing lens can focus and measure 0.5 mm
b. The smallest spot is the best measurement position
c. The robust sensor head meets the IP65 (NEMA4) standard

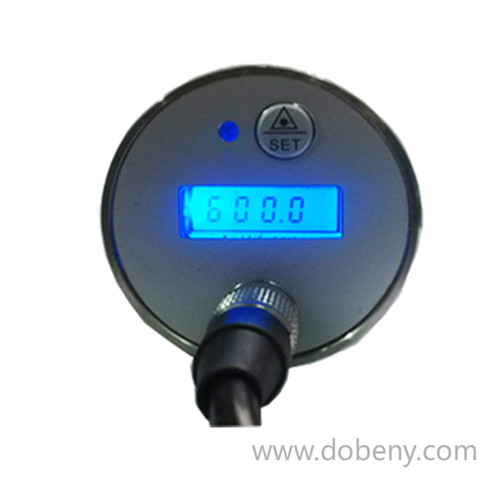

d. LCD temperature display, on-site emissivity adjustment
e. 4-20mA and digital output optional

To Order：

DoBeny’s family of infrared non-contact sensors have no drift and have high repeatability & interchangeability giving them the edge needed to increase production process speed and quality.

Best for measure Printing, papermaking, lamination, drying, food processing, textiles, pharmaceuticals, metallurgy, furnaces, flat glass, refractory materials, heating furnaces, laser welding machines.

high temperature metals（Foundry,Sinter Plant,Blast Furnace,Continuous Casting Processing,Forging,Metal Packaging ,High Temp Heat Treating,Hot Forming Steel Panels

,High Precision Heat Treatment in Vacuum Carburizing,High Temperature Vacuum Heat Treatment,Fasteners Heat Treatment - Hydrogen Embrittlement,Hot Rolling Mills,Tube and Pipe Mills,Rod and Wire Mills,Galvanizing and Annealing Lines,Aluminum Brazing ,Aluminum Processing,Aluminum Solution Reheat)

General Specifications

Model： IRT-GW400A

Range：70~400℃

Supply Voltage:  24 VDC

Output: 4 to 20 mA

Accuracy: ±1%, whichever is greater (when environment temperature is 23±5℃)*

Repeatability: ±1% or ±5℃ , whichever is greater    (when environment temperature is 23±5℃)*

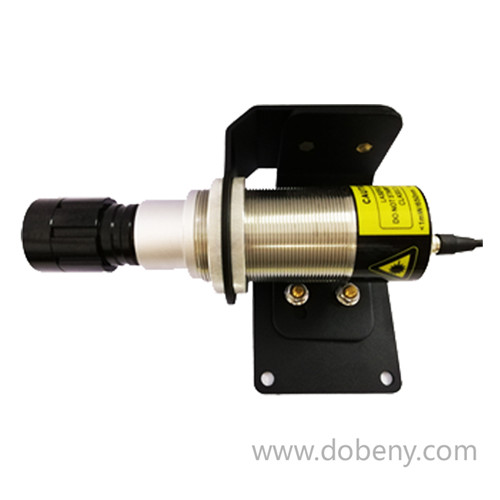

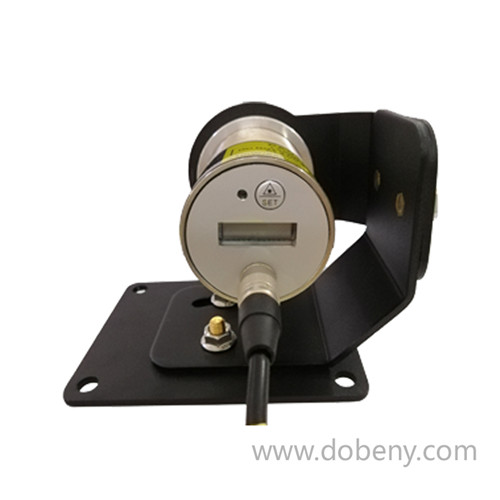

Mounting: two mounting nuts

Cable Length: 2m as standard (custom lengths also available)

Weight: 400g with 2 m(7') cable

Environmental Rating: IP65

Ambient Temperature Operating Range: 0 to 50°C (32 to 122°F)

Dimensions:
