Infrared Low Temperature Sensor

Low Cost Non-Contact Infrared Temperature Sensor 4-20mA

Low Cost Non-Contact Infrared Temperature Sensor 4-20mA

Power: 12-24VDC
Output: 4 -20 mA
Range:0-500℃
Response Time: 300ms
Product description: Dobeny Non-Contact Infrared Temperature Sensor is a range of high quality, low cost, compact sensors which measure the temperature of inaccessible or moving objects and materials.
INQUIRY

DOBENY's new miniature, low-cost, high performance infrared sensor/transmitter model DOBAC features a 18 mm O.D. by 88 mm long stainless steel housing. The IRT-PR series comes with a 2 m shielded cable for power and output connections. Models feature industry standard outputs that provide easy interfacing directly to all meters, controllers, dataloggers, computer boards and PLC’s. The fixed emissivity of 0.95/1.0 allows for quick and easy measurements requiring no adjustment during installation and use.

DOBENY’s family of infrared non-contact sensors have no drift and have high repeatability & interchangeability giving them the edge needed to increase production process speed and quality.

· non-contact

· Output: 4 to 20 mA

· Measurements to 500°C

·interface directly to most of all meters, controllers, dataloggers

· Fast Response with High Stability

General Specifications

Model： IRT-PR500A

Temperature Range: 0-500℃

Supply Voltage: 12-24 Vdc

Output: 4 to 20 mA

Field of View: 20：1

Accuracy: ±2.5°C or ±2% （ Ambient temperature: 23℃±5℃）

Repeatability: ±0.5°C or 0.5%, whichever is greater

Emissivity Setting Range: pre-set to 0.95 /1.0

Emissivity Setting Method: User Adjust emissivity

Response Time: 300 ms

Spectral Range: 8 to 14 μm

Construction: Stainless Steel 304

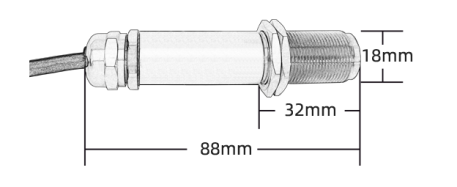

Dimensions: ø18 x length90mm

Mounting: two mounting nuts

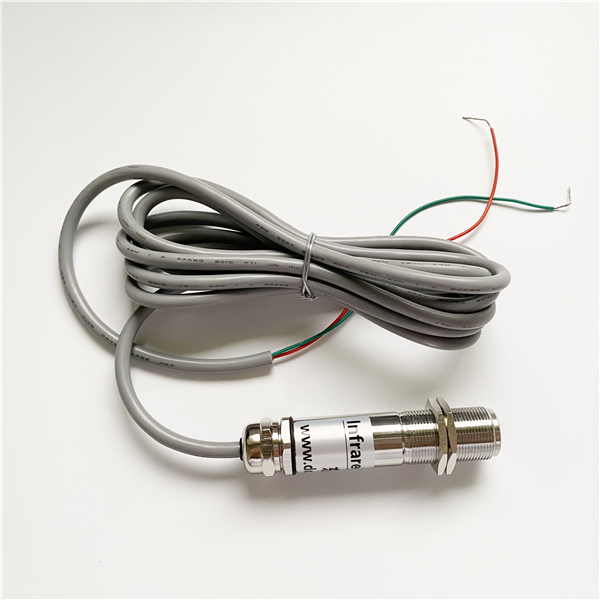

Cable Length: 2m as standard (custom lengths also available)

Weight: 300g with 2 m(7') cable

Environmental Rating: IP65

Ambient Temperature Operating Range: 0 to 50°C (32 to 122°F)

2-wire

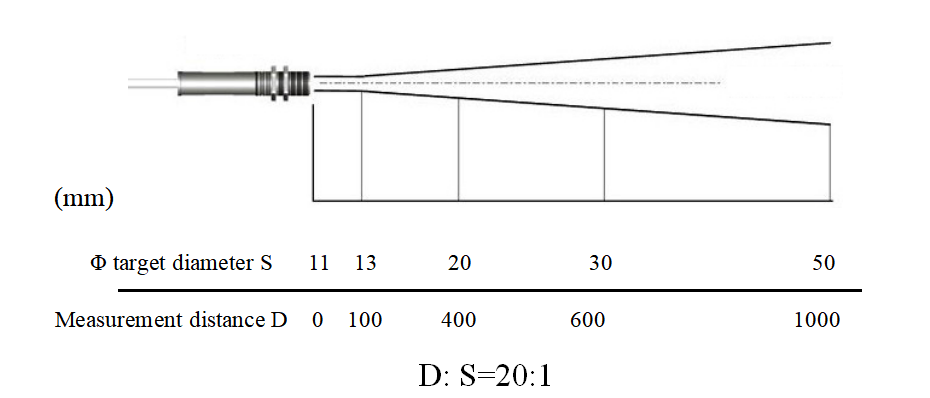

Maximum distance and size of measurement point
Size of measurement target and optical features of infrared thermodetector determine maximum distance between measurement target and measurement head. To prevent measurement error, the measurement target should fill field of view of probe as much as possible. Therefore, always keep measurement point smaller than measurement object or at least the same size as measurement target.

When adjust measurement target and measurement head, ensure that optical path is barrier free, as shown below:

Ordering information IRT(Field of View)-PR(Pre-Calibrated Temperature Range)A-Cable Length.

Ordering Examples: IRT20-PR500A-02，Field of View:20:1, 0 to 500°C, 4-20mA，2m

To Order
Model No.	Description
*IRT[]-PR[]A-[***]	DoBeny Infrared Temperature Sensor IRT-PR
*Field of View [] Select**
20	20:1
Temperature Range [] Select**
500	0 to 500°C (32 to 932°F)
L500	-20 to 500°C (-4 to 212°F) （L：-20）
Cable Length [] Select*
02	2m(7')
05	5 m (16')
10	10 m (33')

Technical Experts at Your Service Call 86-18257343661 from 8 AM—5 PM China for applications and technical support, or email dobeny@126.com, you will have a response within 24 hours.
