Low Cost Non-Contact Infrared Temperature Sensor

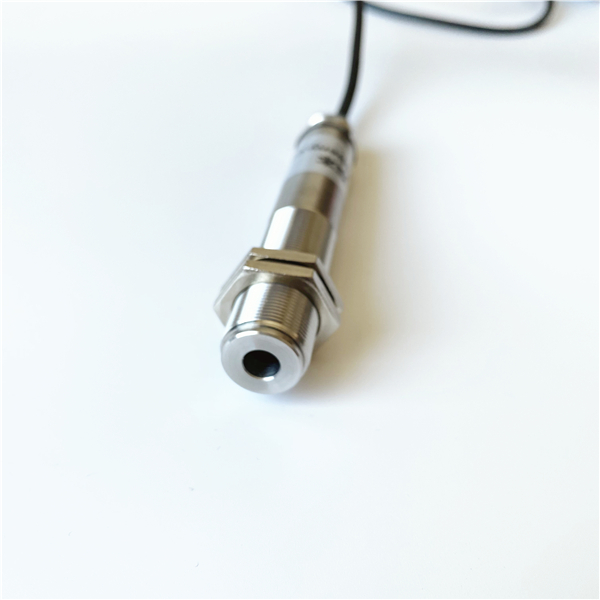

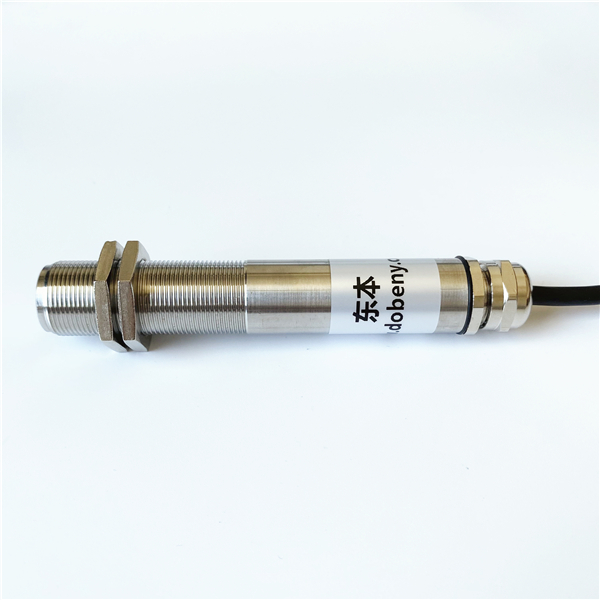

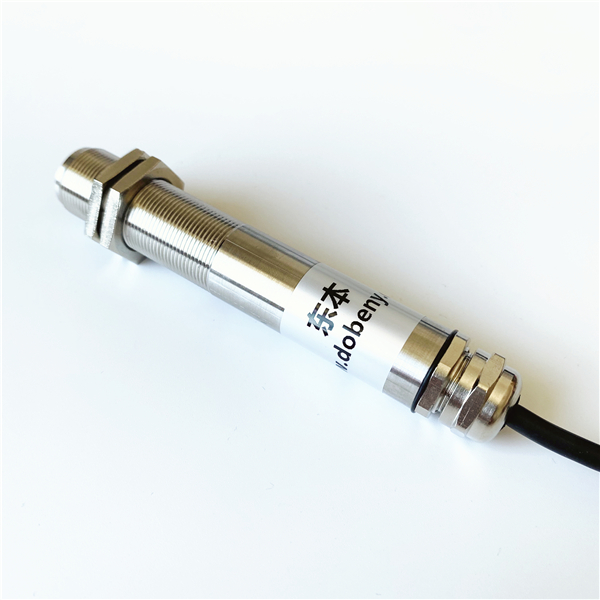

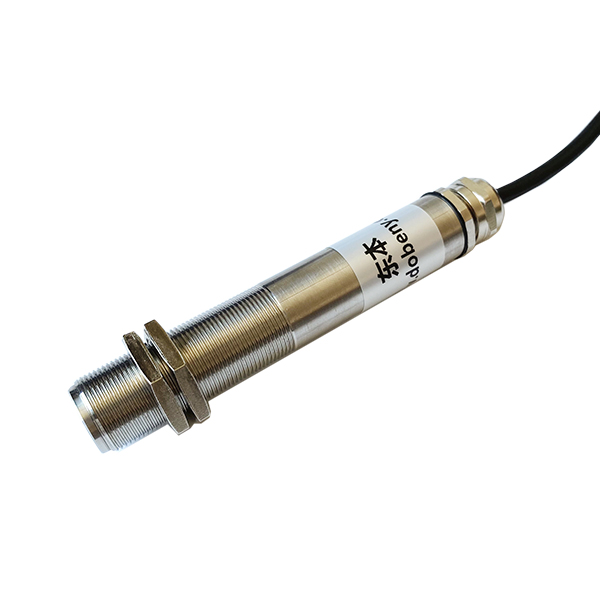

DOBENY's new miniature, low-cost, high performance infrared sensor/transmitter model IRT/01-A features a 18 mm O.D. by 117 mm  long stainless steel housing. The IRT/01-A comes with a 2 m shielded cable for power and output connections. Models feature industry standard outputs that provide easy interfacing directly to all meters, controllers, dataloggers, computer boards and PLC’s. The fixed emissivity of 0.95 allows for quick and easy measurements requiring no adjustment during installation and use.

DOBENY’s family of infrared non-contact sensors have no drift and have high repeatability & interchangeability giving them the edge needed to increase production process speed and quality.

· Non-contact

· Output: 4 to 20 mA

· Measurements to 500°C

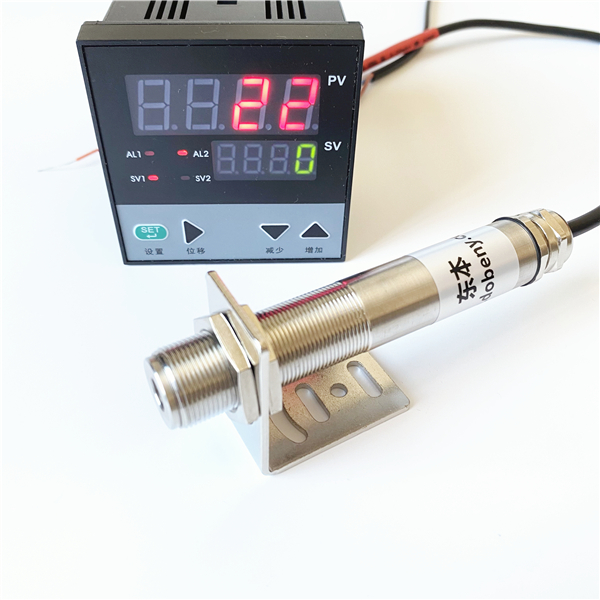

· Interface directly to most of all meters, controllers, dataloggers

· Fast Response with High Stability

· Optional Air/Water Cooled Housing, Air Purge Collar, Laser Sighting Tool and Mounting Brackets

General Specifications

Model：IRT/01-A series

Temperature Range: 0~100℃ / 0~200℃ / 0~300℃ / 0~500℃ / -20~100℃ / -20~300℃.......

Supply Voltage:  24 VDC

Output:  4 to 20 mA

Field of View:  20：1

Accuracy: ±1°C or ±1%  （ Ambient temperature: 23℃±5℃）

Repeatability: ±1°C or 0.5%, whichever is greater

Emissivity Setting Range:  pre-set to 0.95

Response Time:  200 ms

Spectral Range:  8 to 14 μm

Construction:  Stainless Steel 304

Dimensions:  ø18 x length117 mm

Mounting:  two mounting nuts

Cable Length:  2m as standard (custom lengths also available)

Weight: 200g with 2 m(7') cable

Environmental Rating: IP65

Ambient Temperature Operating Range: 0 to 50°C (32 to 122°F)

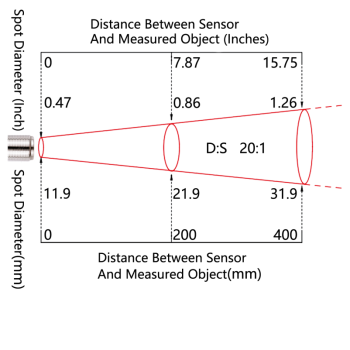

Maximum distance and size of measurement point
Size of measurement target and optical features of Infrared Temperature Sensor determine maximum distance between measurement target and measurement head. To prevent measurement error, the measurement target should fill field of view of probe as much as possible. Therefore, always keep measurement point smaller than measurement object or at least the same size as measurement target.

When adjust measurement target and measurement head, ensure that optical path is barrier free, as shown below:

Ordering information IRT/01-(Pre-Calibrated Temperature Range)A-Cable Length.

Ordering Examples: IRT/01-500A-02，Field of View:20:1, 0 to 500°C, 4-20mA，2m
